Новая производственная линия в чугунолитейном цехе

• Shorter time for product implementation


• Possibility to choose the optimal casting technology regarding costs and funcional properties.

Induction furnace double crucible of medium frequency
OTTO JUNKER

• Crucible volume: 2 x 12 tons
• Melting efficiency: 11,7 tons per hour
• Temperature of melting iron: to 1520°C
• Possibility to melt iron in one crucible and in the same time keeping the temperature of melted iron in the second crucible.
• Cloced non-glicolic water cooling system of the furnace, „water-air” type using cooler ventilators

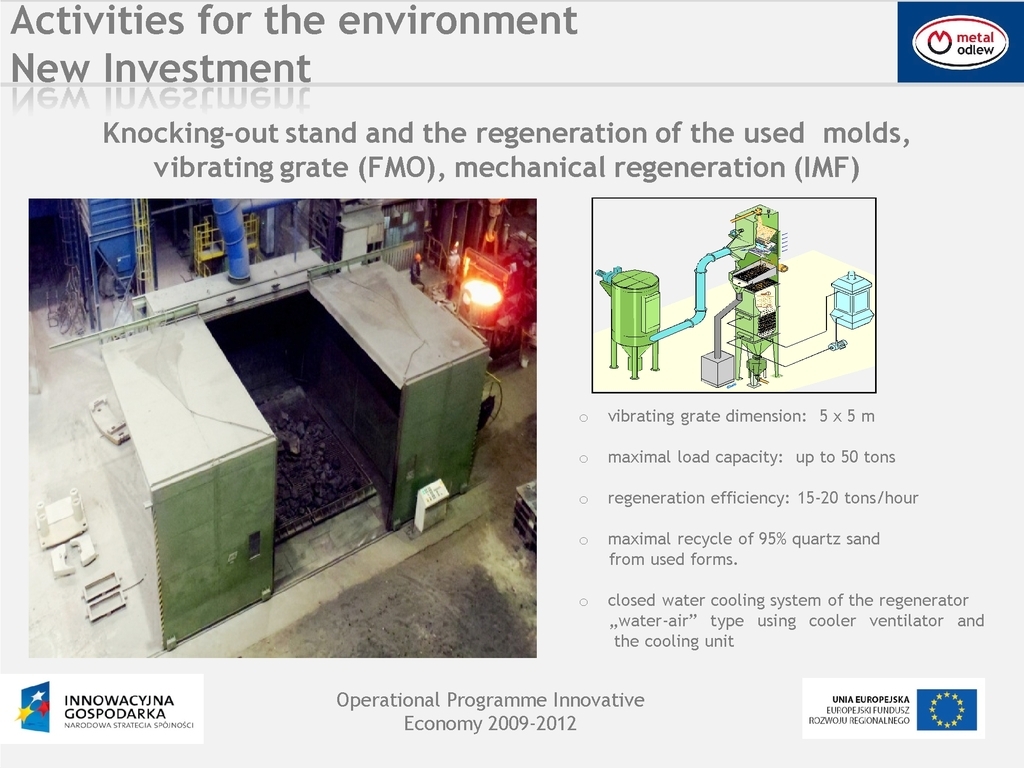

• vibrating grate dimension: 5 x 5 m


• maximal load capacity: up to 50 tons


• regeneration efficiency: 15-20 tons/hour


• maximal recycle of 95% quartz sand from used forms.


• closed water cooling system of the regenerator „water-air” type using cooler ventilator and the cooling unit

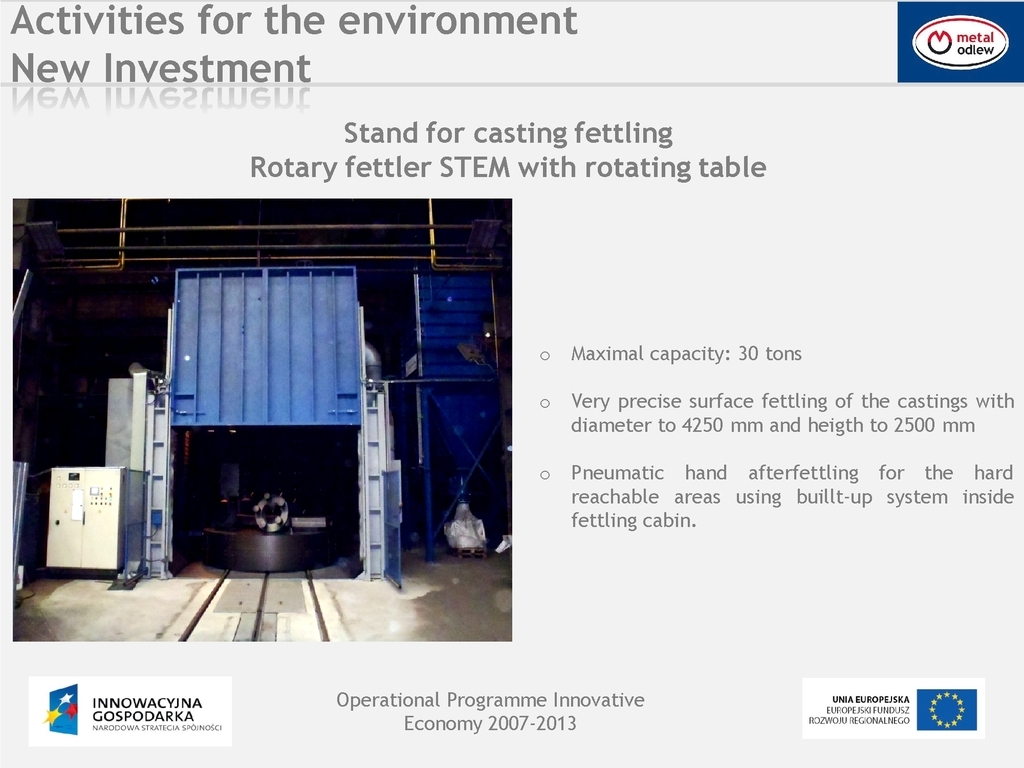

• Maximal capacity: 30 tons


• Very precise surface fettling of the castings with diameter to 4250 mm and heigth to 2500 mm


• Pneumatic hand afterfettling for the hard reachable areas using buillt-up system inside fettling cabin.

• Final machining of the castings up to 30 tons and maximal dimension of 6 m

• Posiibility of machining without using oil cooling emulsions
